Data curation

This tutorial shows how to turn the language polygons from the Digitising tutorial, along with their attributes and metadata from the Attributes and Metadata tutorial, into a dataset ready for Glottography. Data curation aggregates the polygons into languages and language families according to Glottolog.

Requirements

Software: Python 3 is a high-level, free, and open-source programming language. This tutorial uses version 3.12 with the geopandas, pyglottography and pybtex packages installed (see below).

pyglottography also requires a working GDAL installation. GDAL is a library for handling geospatial data formats.

Data: A GeoPackage file containing the language polygons (see the Digitising tutorial) and attributes (see the Attributes and Metadata tutorial). The Alor–Pantar language polygons, including attribute data, can be downloaded here.

A CSV file containing the attribute data, linked to the digitised polygons via the id column. The CSV file for the Alor–Pantar language polygons can be downloaded here.

A BibTeX file containing a reference to the source publication in BibTeX format. The BibTeX file for the Alor–Pantar language map can be downloaded here.

A local clone of the latest Glottolog repository (see below). This data will be used to assign the language polygons to languoids classified as languages or families according to Glottolog.

Overview

Before we can run the pyglottography scripts and curate the language polygons, a bit of housekeeping and data prep is needed. This tutorial covers the following steps:

Installing the required packages

Creating a Glottography dataset requires the pyglottography package, which can be installed from command line or terminal:

pip install pyglottography

The pyglottography package builds on the cldfbench package, a Python toolkit for creating, managing, and publishing datasets in CLDF format. CLDF (Cross-Linguistic Data Format) is a standardised format for linguistic data, designed to make cross-linguistic datasets interoperable and easy to process.

We also need the geopandas and pybtex packages for handling spatial and BibTeX data in this tutorial. If you followed the Glottocodes tutorial and used the guess_glottocode package, geopandas should already be installed. If not, you can easily install them from the command line or terminal.

pip install pyglottography
pip install pybtex

Finally, the GDAL library for handling different geospatial data formats is also required. Installation depends on the operating system. Detailled instructions can be found here: GDAL Download and Installation.

Gathering data in proper format

Converting the language polygons to GeoJSON format

When digitising the language polygons, we stored them in GeoPackage format, a well-supported format in QGIS for handling spatial data. pyglottography, however, requires GeoJSON, a lightweight, human-readable format for representing geographic features, so we need to convert the GeoPackage. This task that takes little more than a line of Python code:

import geopandas as gpd
polygons = gpd.read_file("schapper2020papuan.gpkg")
polygons.to_file("dataset.geojson", driver="GeoJSON")

You might be wondering why we don’t use GeoJSON from the start. GeoPackages allow local projections, which can be useful during digitisation for higher accuracy. In contrast, GeoJSON coordinates must be in longitude and latitude using decimal degrees, corresponding to the EPSG:4326 coordinate reference system (CRS). When digitising benefits from a local CRS, GeoPackages are preferable. In short, while GeoPackage is more flexible for digitising in QGIS, GeoJSON is more human-readable and can even be displayed in many web browsers. This is why we use both formats.

Note that the script above assumes the GeoPackage data is already in the EPSG:4326 CRS, which is true for our dataset. If a different CRS was used during digitisation, the data must be reprojected to EPSG:4326 first. Note also that the output file name (dataset.geojson) already hints at an important aspect of running the pyglottography data curation: the script expects all input data to follow specific naming conventions and be placed in designated locations on your computer.

Cloning the Glottolog data

The pyglottography package uses Glottolog to align the polygons with languages and language families. To do this, it requires a local copy of the Glottolog raw data, which can be cloned from GitHub. Cloning creates a full local copy of the Glottolog repository on a local computer. Navigate to a suitable folder and clone the current release of the Glottolog raw data from GitHub using the command line or terminal:

git clone https://github.com/glottolog/glottolog.git

Whenever you use the Glottolog data to curate a new Glottography dataset, make sure your local copy is up to date, and pull the latest version from GitHub if necessary:

git status
git pull

This checks the status of your local repository and pulls the latest changes from GitHub.

Initiating a Glottography dataset

Next, we initiate a new Glottography dataset from the command line or terminal:

cldfbench new --template glottography

This command uses the Glottography template provided by cldfbench to create a ready-to-use dataset skeleton. It sets up the folder structure, including subfolders for raw data, scripts, and output, and includes the initial configuration files needed for pyglottography to recognise and process the dataset. You will be prompted to provide the following information via command line:

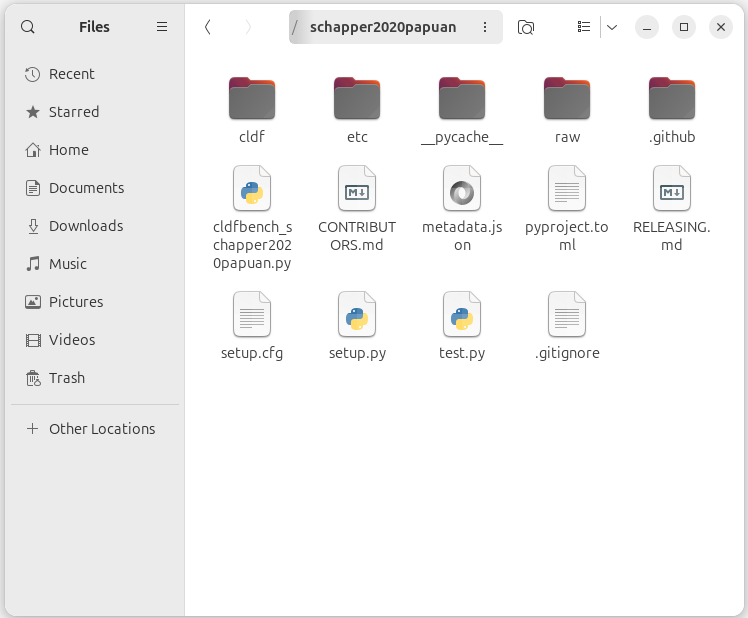

The screenshot below shows the folder structure of the newly initialised Glottography dataset.

The folder structure in a Glottography dataset.
The folder structure in a Glottogaphy dataset.



The three main folders are still mostly empty:

Distributing the data into their designated folders

Next, we distribute the language polygons, attribute data, and reference into their designated folders. The pyglottography curation script requires the data to follow specific file-naming conventions and to be stored in the correct folders:

Why is there a separate attribute file? While the metadata could, in principle, be read directly from the attributes in the GeoJSON file, pyglottography instead relies on the CSV file. This approach makes data curation and updating easier and more transparent. Since the Glottolog language catalog is updated about twice a year, it must be possible to regenerate a Glottography dataset with updated Glottocodes. By keeping attributes in a separate CSV file, updates involve editing only a plain text file without geometry, something that can easily be done in any text editor and tracked with version-control software such as Git.

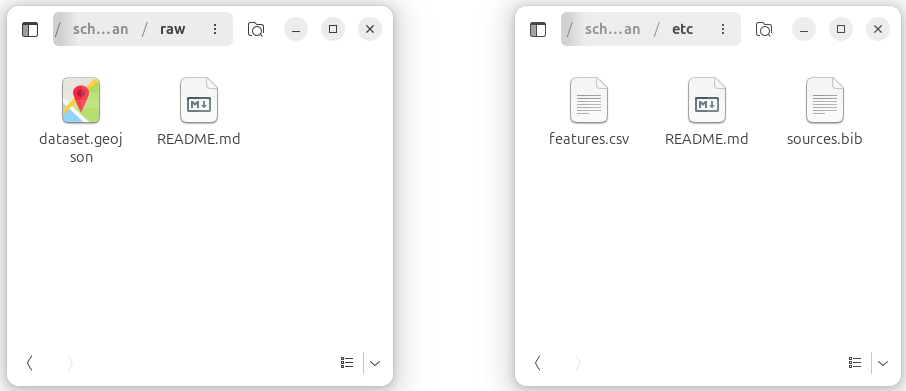

The screenshot below shows the raw and the etc folder after distributing the data.

Folder structure in a Glottography dataset.
The raw and etc folders after distributing the language polygons (dataset.geojson), attributes (features.csv), and reference (sources.bib).



Running the data curation script

With all data in place, we can now run the curation process. From a command-line terminal, navigate into the Glottography dataset folder and invoke the makecldf command, pointing it to the dataset script. The --glottolog flag specifies the path to your local clone of the Glottolog data:

cd schapper2020papuan
cldfbench makecldf cldfbench_schapper2020papuan.py --glottolog PATH_TO_GLOTTOLOG

The makecldf command is part of the cldfbench workflow. It takes care of assembling the CLDF dataset from the language polygons in the raw folder and attributes and reference in the etc folder.

Output

The CLDF folder includes three sets of vector geometries enriched with Glottocodes at three levels of aggregation in GeoJSON format:

The cldf folder includes three sets of vector geometries, each enriched with Glottocodes and provided at different levels of aggregation in GeoJSON format:

Features: Speaker areas retaining the classification from the source publication (features.geojson). The Features GeoJSON file of the Alor–Pantar languages map can be downloaded here.

Language areas: Speaker areas aggregated at the language level according to Glottolog’s classification (languages.geojson). The Language areas GeoJSON file of the Alor–Pantar languages map can be downloaded here.

Family areas: Speaker areas aggregated at the language family level according to Glottolog’s classification (families.geojson). The Family areas GeoJSON file of the Alor–Pantar languages map can be downloaded here.
